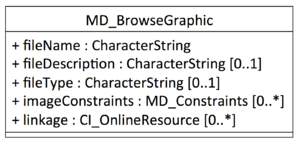

MD BrowseGraphic

From Earth Science Information Partners (ESIP)


Elements Domain Definition and Recommended Practice Examples
1 mcc:fileName 1 gco:CharacterString URL to a thumbnail image that can be rendered in browser. In order of importance, we recommend these types of images:
  1. sample imagery produced by data.
  2. map/location representing of data location
  3. snapshot of a time series plot
  4. an image of the station or lab
  5. or as a last resort, a logo associated with data (e.g. project logo).
(NOTE: This is the ONLY gco:CharacterString field that SHOULD contain a URL.)[No longer valid]
2 mcc:fileDescription 0..1 gco:CharacterString Brief sentence that can become an image caption. crustal ages
3 mcc:fileType 0..1 gco:CharacterString Suffix of image type. GIF
4 mcc:imageConstraints 0..* mco:MD_Constraints Constraints on the use of the browse graphic. Example needed
5 mcc:linkage 0..* cit:CI_OnlineResource Link to browse graphic Example needed

ISO Legend

Possible Parent Elements

ESIP-logo-tag sm-H.jpg

Please contribute!

Example of record with a URL to an image
